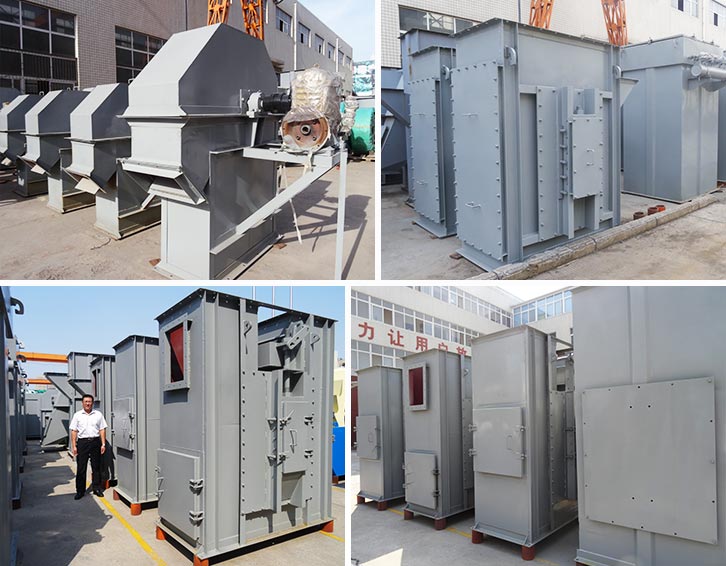

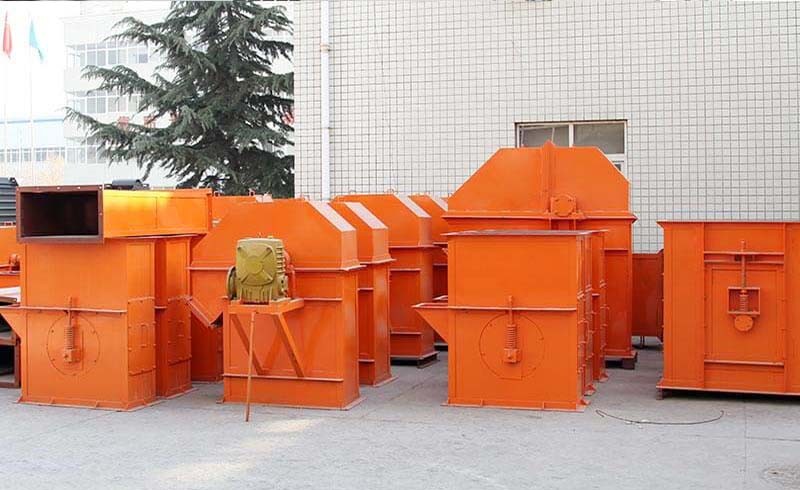

Bucket Elevator

Introduction of Bucket Elevator:

Bucket Elevator is one of leading product of our company. It holds the advantages of simple structure, stable operation and high lifting height.

Bucket Elevator is suitable for powdery, granular and small pieces of material.

Considering material characteristics and work environment, we produce kinds of bucket elevators: belt bucket elevator, chain bucket elevator, plate chain bucket elevator, etc.

Technical Parameter

Technical parameters of ring chain bucket elevator

Specification	Max.lifting Height (m)	Conveying Capacity (m³/h)
TH160	25	7-12
TH200	28	8-15
TH250	30	10-25
TH300	30	25-35
TH315	40	30-40
TH400	40	45-60
TH500	40	65-80
TH630	40	100-120
TH800	40	130-150

Technical parameters of wire belt bucket elevator

Specification	Max. lifting Height (m)	Convrying Capacity (m³/h)
TDG160	80	34
TDG200	80	45
TDG250	80	71
TDG315	80	101
TDG400	80	158
TDG500	80	218
TDG630	80	345
TDG800	80	491

Plate chain bucket elevator

Specification	Max.lifting Height (m)	Max. lifting Capacity (m³/h)
NE15	40	16
NE30	59	31
NE50	62	60
NE100	58	110
NE150	65	170
NE200	73	220
NE300	61	320
NE400	47	420
NE500	58	500
