Production Capacity: 6.5-135t/h
Product Models: φ1.83×7～φ4.6×14m

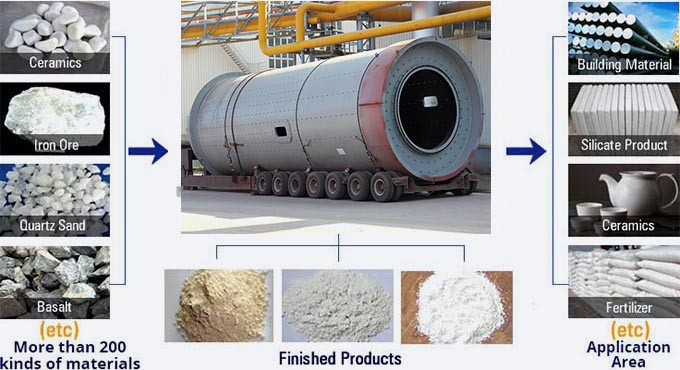

Application Area: building material, metallurgical, electric and chemical industries.

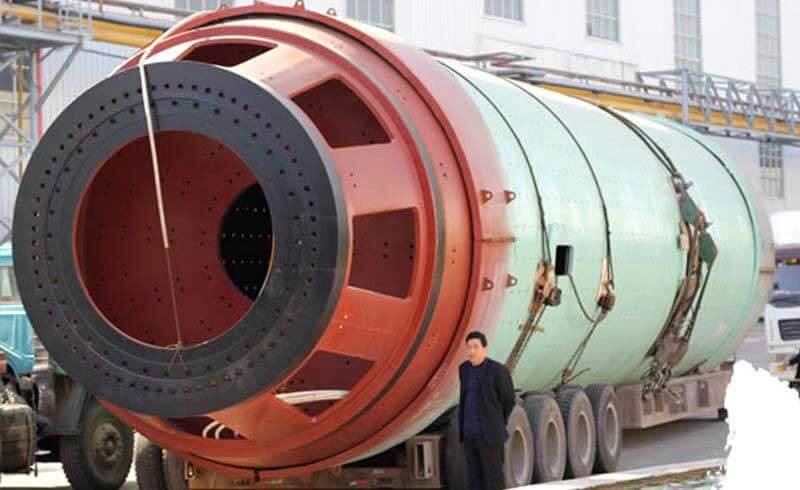

Cement Mill, as the key grinding equipment, is mainly used in cement ,silicate and other manufactuer industries.
The hollow shaft is made of cast steel and has a wear-resisting lining that can be replaced, so cement mill has long service life and is easy to operate and repair.
You can choose wet cement mill or dry cement mill according to materials.
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
(Dia.×Length)
(m)Speed
(r/min)Feeding Size
(mm)Griding Media Loading
(t)
Φ2.2×7.0
21.5
<25
32
Φ2.2×9.0
21.5
<25
44
Φ2.2×9.5
21.5
<25
45
Φ2.2×11
21.5
<25
58
Φ2.2×13
21.5
<25
58
Φ2.4x10
20.3
<25
55
Φ2.4×11
20.3
<25
62
Φ2.4×12
20.3
<25
68
Φ2.4×13
20.3
<25
68
Φ2.6×11
19.7
<25
68
Φ2.6×13
19.7
<25
82
Φ3.0×9.0
18.2
<25
78
Φ3.0×11
18.2
<25
95
Φ3.0×12
18.2
<25
100
Φ3.0×13
18.2
<25
108
Φ3.2×11
17.8
<25
110
Φ3.2×13
17.8
<25
128
Φ3.2×13
17.7
<25
128
Φ3.2×14
17.8
<25
138
Φ3.5×11
17.1
<25
160
Φ3.5×13
17.3
<25
175
Φ3.8×12
17
<25
175
Φ3.8×13
17
<25
190
Φ4.0×13
16.3
<26
200
Φ4.2×11
15.8
<25
195
Φ4.2x13
15.8
<25
230
Φ4.2×14
15.6
<25
252
Φ4.2×15
15.6
<25
270
