Hammer Crusher

Introduction of hammer crusher:

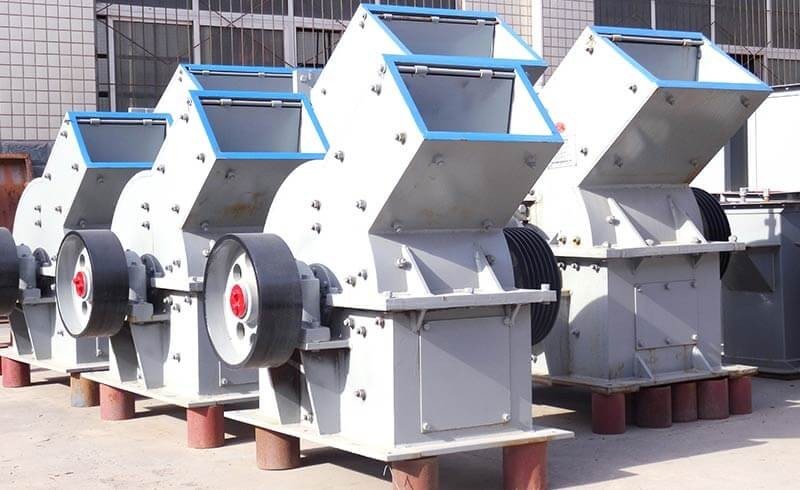

Hammer crusher

Hammer crusher is widely used in the works of mine, smelting, building material, road, railway, irrigation, chemical industry, etc. It is especially used to crush limestone and medium hard materials which of compression strength are less than 200Mpa.

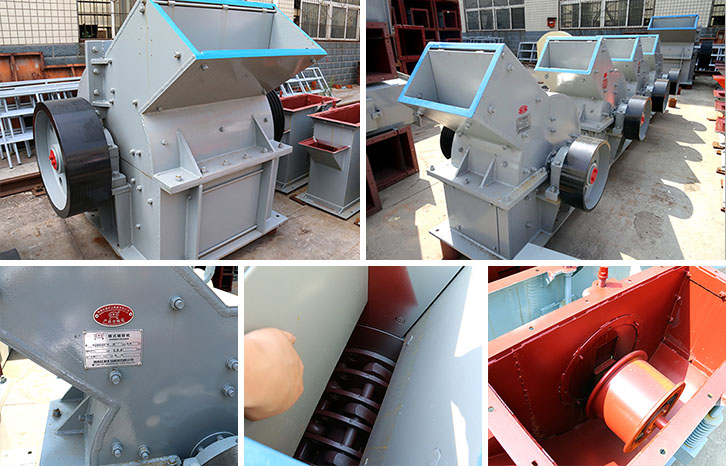

Hammer crusher

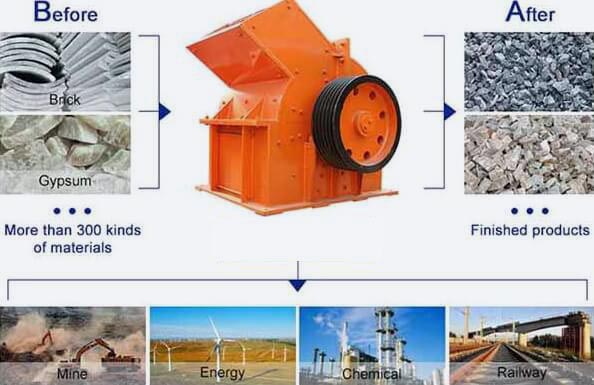

Materials that can be broken: quartz sand, river pebbles, calcite, granite, quartzite, concrete, coal, salt, white ash, gypsum, brick, limestone, construction waste, glass, cement clinker and certain metals, etc.

Technical Parameter

PC Hammer Crusher

PCZ Heavy Hammer Crusher

PCX Heavy Hammer Crusher

Specification	Capacity(t/h)	Power (kw)
PC 400×300	3-10	4P 11
PC 600×400	6-22	4P 22
PC 800×600	10-40	4P 55
PC 1000×800	15-50	4P 75
PC 1000×1000	18-75	4P 90
PC 1200×1200	22-95	4P 132

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Feeding Size (mm)	Processing Capacity(t/h)
PCZ1308	≤380	60-160
PCZ1410	≤450	80-210
PCZ1610	≤480	100-230
PCZ1612	≤500	120-350
PCZ1615	≤550	200-550
PCZ1716	≤600	400-850
PCZ1720	≤650	500-1000
PCZ1920	≤750	800-1500
PCZ2225	≤1000	1500-3000

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Feeding Size（mm）	Processing Capacity（t/h）
PCX 0706	≤150	30-70
PCX 0808	≤150	45-100
PCX 0910	≤200	70-200
PCX 1012	≤200	130-300
PCX 1213	≤250	200-350
PCX 1216	≤250	230-500
PCX 1220	≤250	300-700
PCX 1622	≤300	400-1200

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
