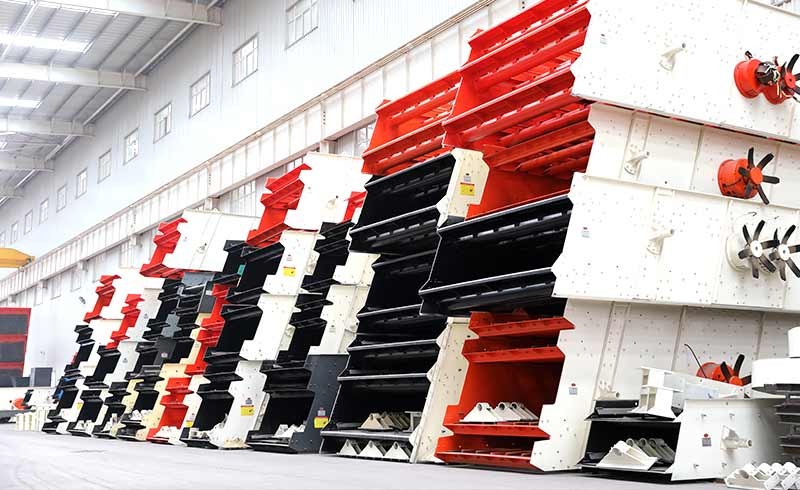

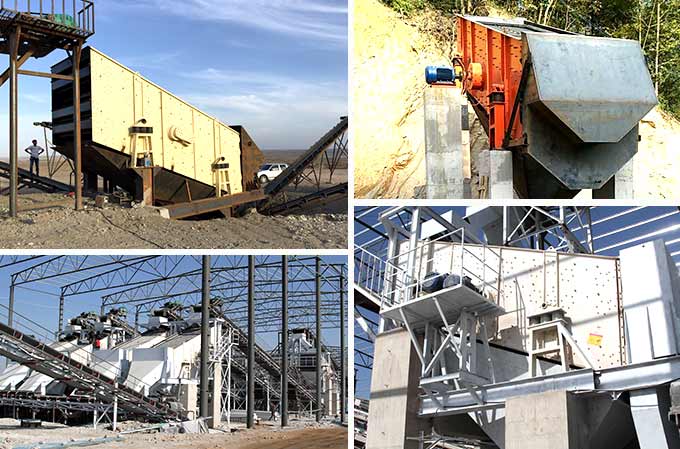

ZD Series Vibrating Screen

Features: advanced structure, strong excitation force, low vibration noise, easy maintenance, sturdy and durable

ZD series vibrating screen is a new type of circular vibrating screen product which is based on YA and YK series, comprehensive customer site use and maintenance experience, and upgraded for heavy duty conditions.

Outstanding advantages:

Screen angle is 18°, screening efficiency is higher

The exciter is an eccentric shaft + eccentric block structure, providing sufficient excitation force

Thin oil self-lubricating, change lubricant once every 3-6 months

The key parts are designed with a wear-resistant rubber protective layer to extend the service life of the screen.

How does the vibrating Screen Work

ZD series vibrating screen is mainly composed of screen box, vibration exciter, suspension (or support) device and motor.The motor is driven by a V-belt to drive the spindle of the exciter to rotate. Due to the centrifugal inertial force of the unbalanced weight on the exciter, the screen box is vibrated.Different amplitudes can be obtained by changing the exciter eccentric shaft.

Technical Parameter

Model	Max.Feeding Size (mm)	Processing capacity(t/h)
2ZD1545	200	45-500
3ZD1545	200	55-500
4ZD1545	200	65-500
2ZD1855	200	55-600
3ZD1855	200	65-600
4ZD1855	200	75-600
2ZD2165	200	65-700
3ZD2165	200	75-700
4ZD2165	200	85-700
2ZD2465	200	80-800
3ZD2465	200	90-800
4ZD2465	200	100-800
2ZD2765	200	100-900
3ZD2765	200	110-900
4ZD2765	200	120-900
2ZD3065	200	110-1200
3ZD3065	200	120-1200
4ZD3065	200	130-1200
2ZD3075	300	120-1300
3ZD3075	300	130-1300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
