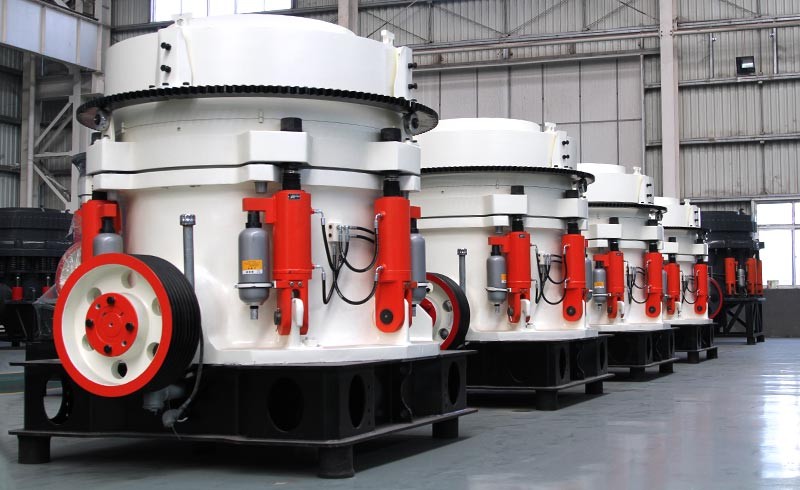

Hydraulic Cone Crusher

Introduction of Hydraulic Cone Crusher:

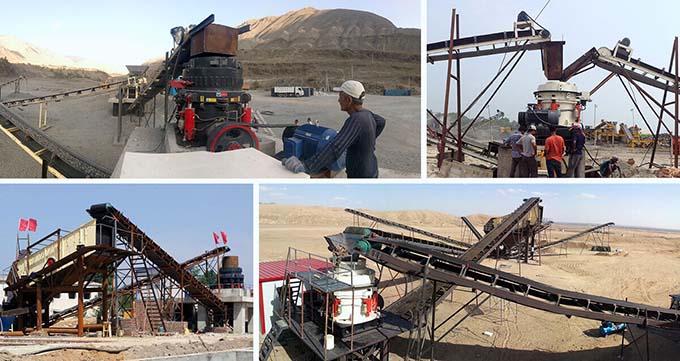

Hydraulic cone crusher is widely used in mining industry, cement industry, building industry, metallurgy industry and mineral industry. Due to its strict requirements in particle size, higher requirement of finished product rate and high degree of automation, it is the preferred choice in the stone crushing plant.

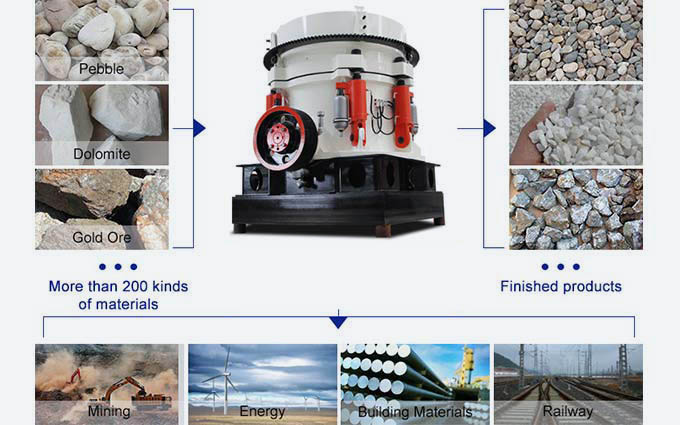

Hydraulic cone crusher adopts entirely hydraulic operation, which is easy to use and realize automation, so its reliability and using life are improved greatly. The machine body is of casting steel structure; heavy steel bars are set in the heavy load parts; Downtime is greatly reduced by the insurance device.Materials that can be broken: limestone, granite, basalt, river pebble, dolomite, bluestone, iron ore, construction waste.

Materials that can be broken: limestone, granite, basalt, river pebble, dolomite, bluestone, iron ore, construction waste.

Technical Parameter

Model	Cavities	Max.feeding Size（mm）	Processing capacity（t/h）
GYS 300	C1	140	81-180
	C2	80	60-180
	F1	60	36-145
	F2	30	36-130
GYS 400	C1	190	207-400
	C2	168	162-350
	C3	110	126-310
	F1	85	109-230
	F2	70	82-230
	F3	50	40-230
GYS 500	C1	215	280-650
	C2	190	258-450
	C3	170	180-410
	F1	105	162-355
	F2	70	136-330
	F3	55	90-300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
