Production Capacity:10-280t/h
Feeding Size:0-3mm
Applied Material:iron ore,magnetite, pyrrhotite, ilmenite, hematite, limonite, rare earth,manganese ore, slag, iron sand, slurry, etc.

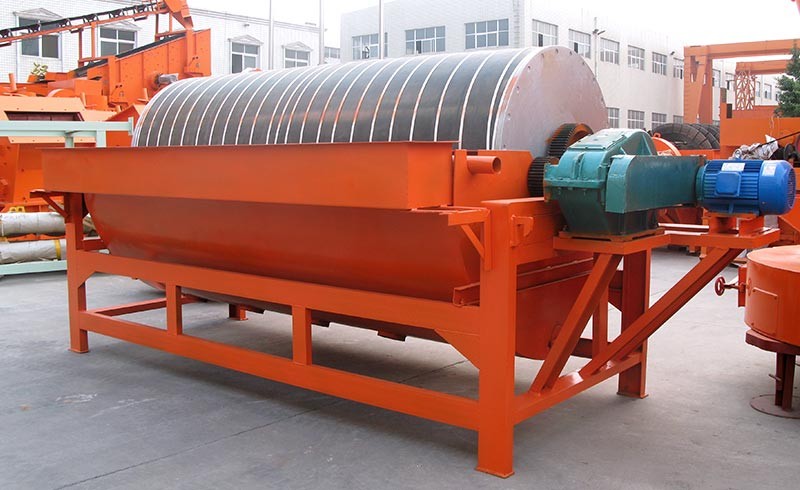

Magnetic separator uses dynamic magnetic system design, which has good separating effect.It has the following advantages: large magnetic field strength, large handling capacity, low maintenance rate, simple structure, easy operation, adjustable magnetic field intensity and large output.

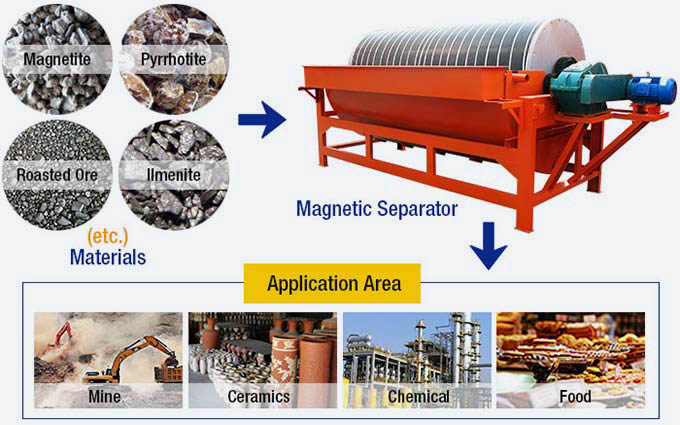

Application area / Applicable materials: iron ore, ore processing line, and other production lines requiring iron removal; iron containing magnetite, pyrrhotite, roasting ore, ilmenite, coal, nonmetallic ore, etc.; separation of iron ore, coal, building materials and weak magnetic ore.
Model
Feeding size
（mm）Processing capacity
（t/h）
CTB6012
2-0
10-20
CTB6018
2-0
15-30
CTB7518
2-0
20-45
CTB9018
3-0
40-60
CTB9021
3-0
45-60
CTB9024
3-0
45-70
CTB1018
3-0
50-75
CTB1021
3-0
50-100
CTB1024
3-0
60-120
CTB1218
3-0
80-140
CTB1224
3-0
85-180
CTB1230
3-0
100-180
CTB1530
3-0
170-280
