Roll crusher

Introduction of roller crusher:

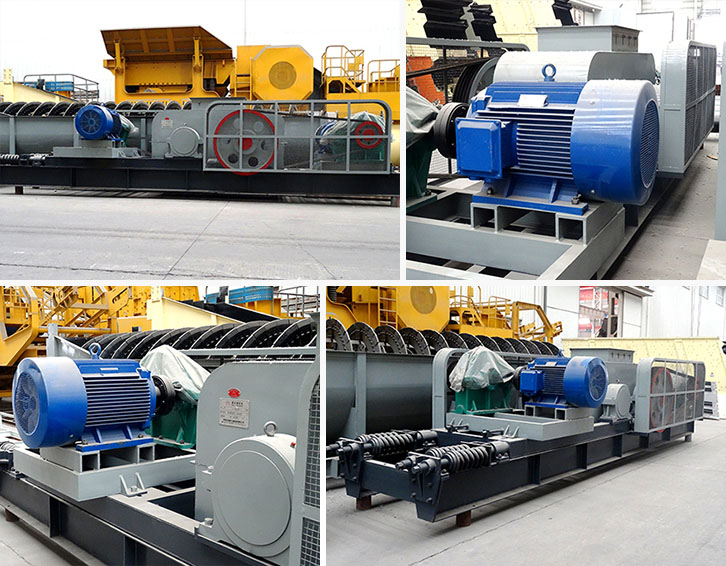

Roll crusher is mainly composed of roller, roller support bearing, hold-down device, adjustment device, driving device and so on. When discharging materials, we can realize adjustment of discharging granularity by means of adjusting distance between the two rollers.

Roll crusher can be used for medium and fine crushing of ores and stone with medium and low hardness and compressive strength not more than 120-150Mpa. It has good crushing effect on hard materials, which has the following advantages: easy maintenance, simple structure, less excessive comminution, large crushing ratio, simple process and low operating cost.

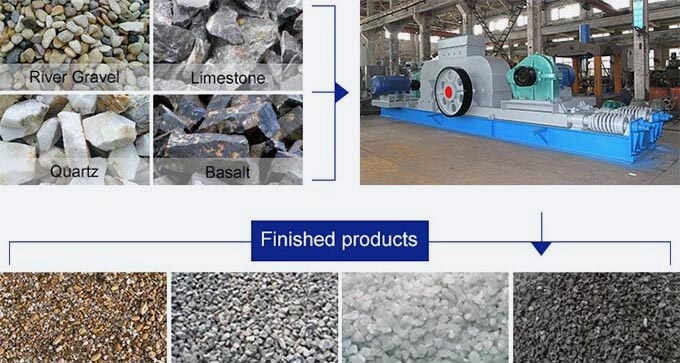

Materials that can be broken: granite, basalt, iron ore, quartzite, gangue, coal, river pebble, perlite, limestone, dolomite, construction waste, glass, cement clinker and certain metals, etc.

Technical Parameter

Model	Input Size (mm)	Processing capacity (t/h)
2PG0425	≤25	3-10
2PG0640	≤25	5-20
2PG0740	≤25	10-30
2PG0850	≤25	15-40
2PG1060	≤30	20-50
2PG1260	≤30	25-70
2PG1560	≤30	30-110
