Applied Materials: dolomite, cement clinker, bauxite, active lime, aluminium hydroxide, chromium ore, etc.
Get Quotation
Free Inquiry
Get Quotation
Free Inquiry
Leave message
E-mail：sino@zdzg.com

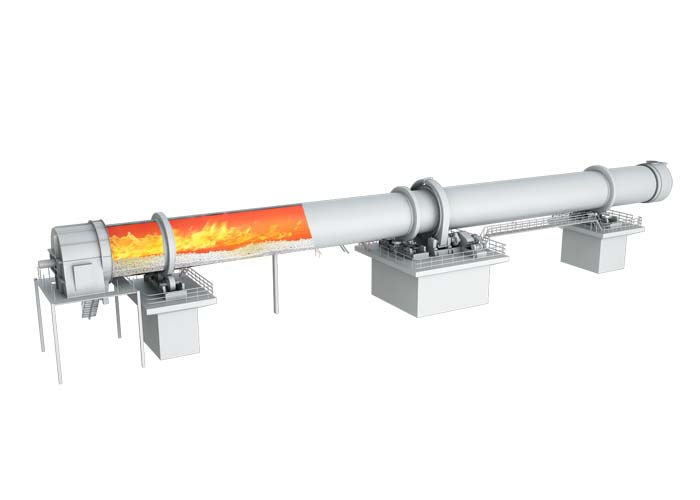

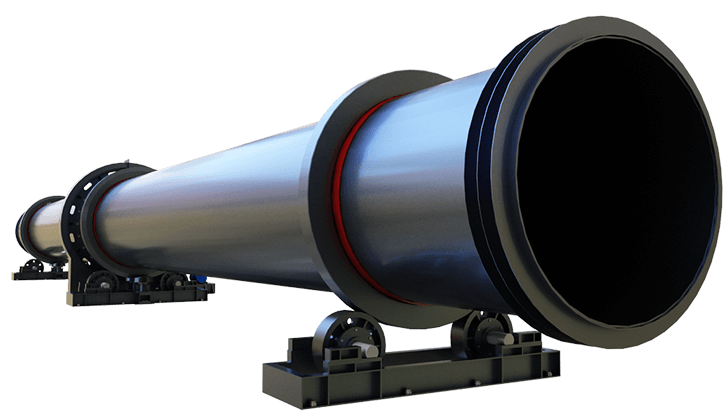

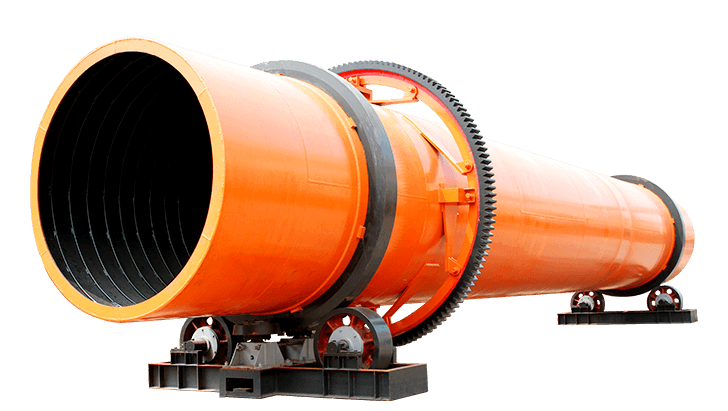

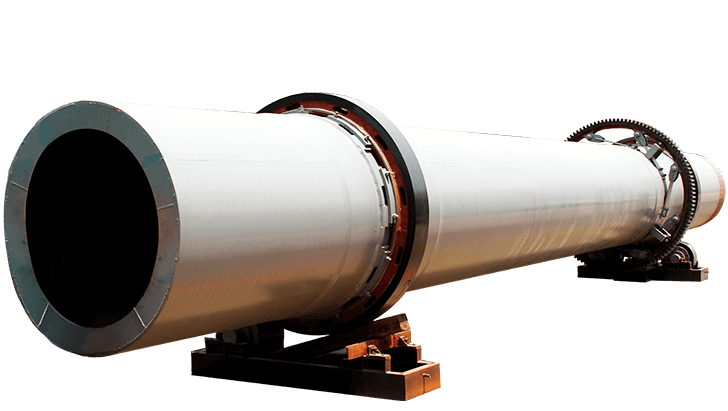

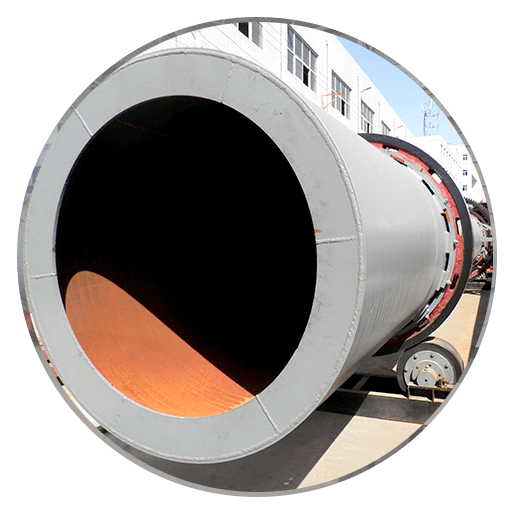

Rotary kiln refers to rotary combustion kiln (commonly known as rotary kiln), which belongs to building materials and equipment. Rotary kiln can be divided into cement kiln, metallurgical chemical kiln and lime kiln according to different material processing.
Calcined materials: cement clinker, dolomite
Roasting materials: iron ore, chromium (nickel) iron ore, high alumina bauxite, aluminum hydroxide, chrome ore, chrome ore, active lime
Rotary kilns are divided into large, medium and small models. Different types of machines can be customized according to your own needs. The most popular models are: Ф3.0×45, Ф 3.2×50, Ф3.5×54, Ф4.0×60, etc
| Product Specification （m） |
Capacity （t/d） |
Rotation speed （r/min） |
| Φ2.5×40 | 180 | 0.44-2.44 |
| Φ2.5×50 | 200 | 0.62-1.86 |
| Φ2.5×54 | 280 | 0.48-1.45 |
| Φ2.7×42 | 320 | 0.10-1.52 |
| Φ2.8×44 | 450 | 0.437-2.18 |
| Φ3.0×45 | 500 | 0.5-2.47 |
| Φ3.0×48 | 700 | 0.6-3.48 |
| Φ3.0×60 | 800 | 0.3-2 |
| Φ3.2×50 | 1000 | 0.6-3 |
| Φ3.3×52 | 1300 | 0.266-2.66 |
| Φ3.5×54 | 1500 | 0.55-3.4 |
| Φ3.6×70 | 1800 | 0.25-1.25 |
| Φ4.0×56 | 2300 | 0.41-4.07 |
| Φ4.0×60 | 2500 | 0.396-3.96 |
| Φ4.2×60 | 2750 | 0.41-4.07 |
| Φ4.3×60 | 3200 | 0.396-3.96 |
| Φ4.5×66 | 4000 | 0.41-4.1 |
| Φ4.7×74 | 4500 | 0.35-4 |
| Φ4.8×74 | 5000 | 0.396-3.96 |
| Φ5.0×74 | 6000 | 0.35-4 |
| Φ5.6×87 | 8000 | Max4.23 |
| Φ6.0×95 | 10000 | Max5 |
| Design capacity (t/d) |
Specification （m） |
Burning temperature （°C） |
| 150 | Φ2.5 × 40 |
1350/ 1250 |
| 200 | Φ2.8 × 42 |
1350/ 1250 |
| 250 | Φ3 × 46 |
1350/ 1250 |
| 300 | Φ3.2 × 50 |
1350/ 1250 |
| 350 | Φ3.5 × 54 |
1350 |
| 400 | Φ3.6 × 56 |
1350 |
| 500 | Φ3.8 × 58 |
1350 |
| 600 | Φ4×60 Φ4.2×50 |
1350 |
| 750 | Φ4.3 × 58 |
1350 |
| 800 | Φ4.3 × 64 |
1350 |
| 1000 | Φ4.8 × 68 |
1350 |
| Product specifications(m) |
Capacity (t/d) |
Rotation speed(r/min) |
| Φ2.5×40 | 180 | 0.44-2.44 |
| Φ2.5×50 | 200 | 0.62-1.86 |
| Φ2.5×54 | 204 | 0.48-1.45 |
| Φ2.7×42 | 320 | 0.10-1.52 |
| Φ2.8×44 | 400 | 0.437-2.18 |
| Φ3.0×45 | 500 | 0.5-2.47 |
| Φ3.0×48 | 700 | 0.6-3.48 |
| Φ3.0×60 | 300 | 0.3-2 |
| Φ3.2×50 | 1000 | 0.6-3 |
| Φ3.3×52 | 1300 | 0.266-2.66 |
| Φ3.5×54 | 1500 | 0.55-3.4 |
| Φ3.6×70 | 1800 | 0.25-1.25 |
| Φ4.0×56 | 2300 | 0.41-4.07 |
| Φ4.0×60 | 2500 | 0.396-3.96 |
| Φ4.2×60 | 2750 | 0.4-3.98 |
| Φ4.3×60 | 3200 | 0.396-3.96 |
| Φ4.5×66 | 4000 | 0.41-4.1 |
| Φ4.7×74 | 4500 | 0.35-4 |
| Φ4.8×74 | 5000 | 0.396-3.96 |
| Φ5.0×74 | 6000 | 0.35-4 |
| Φ5.6×87 | 8000 | Max4.23 |
| Φ6.0×95 | 10000 | Max5 |
There are many factors that determine the price of the Rotary kiln, mainly the type of machine and the size of the model; the machines produced by our company are factory direct sales, Guarantee 100% factory price
As an advanced manufacturer and exporter in China, our company has produced several series of machines all over the world, such as Australia, Malaysia, Indonesia, Philippines, India, Pakistan, South Africa, Tanzania, Egypt, etc., which have been unanimously affirmed by users. The rate is over 80%
Contact Us
S.C.G.
Corning
KCC
Vale SA
Coal India
Norilsk Nickel
Capacity: 300t/h
Material: bauxite
Contact Us
Capacity: 600t/D
Material: limestone
Contact Us
Capacity: 900t/h
Material: limestone
Contact Us
