Production capacity:80-1500t/h
Feeding size:300-1500mm
Applied Material:river gravel, granite, basalt, iron ore, limestone, calcite, quartz, diabase, etc.

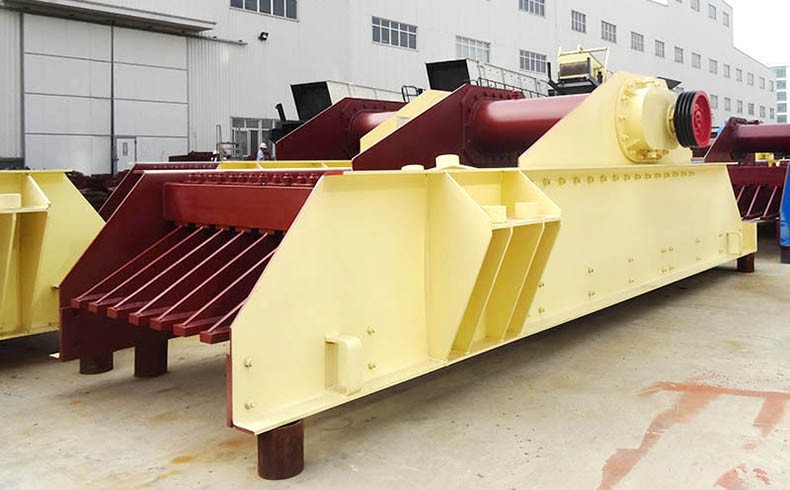

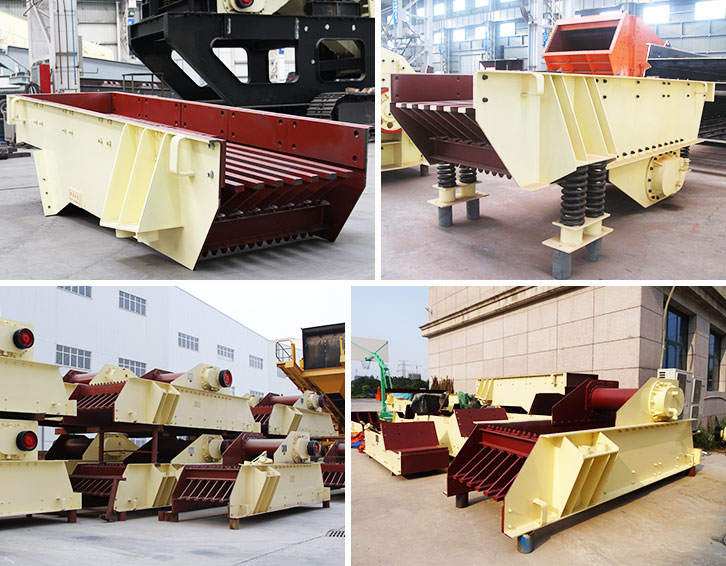

The vibration feeder adopts the structure characteristic of double eccentric shaft exciter, which ensures that the equipment can withstand the impact of large material drop, and the feeding capacity is large. In the production process, the bulk and granular materials can be uniformly, timed and continuously given to the receiving device from the storage bin.

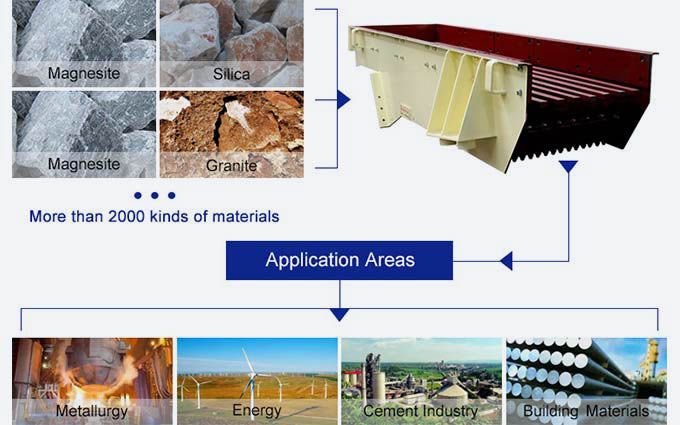

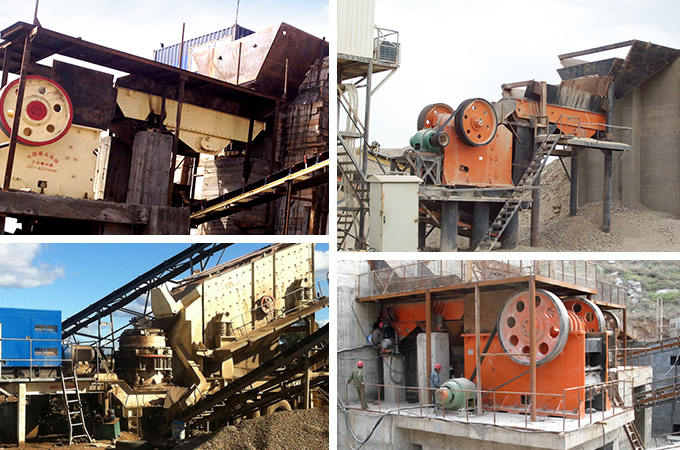

Vibrating feeder is widely used in crushing and screening equipment of metallurgy, coal mine, mineral dressing, building materials, chemical industry, abrasive and so on.
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Model
Max. Feeding Size (mm)
Processing Capacity (t/h)
GZD-650×2300
300
80-100
GZD-750×2500
350
100-130
GZD-850×3000
400
120-150
GZD-1000×3600
500
150-200
GZD-1100×3600
580
240-300
GZD-1300×3600
650
450-600
GZD-1500×3600
1050
450-1000
ZSW-380×95
500
100-280
ZSW-490×110
630
150-400
ZSW-490×130
750
400-700
ZSW-600×130
750
400-700
ZSW-600×150
800
500-900
ZSW-600×180
900
700-1300
ZSW-600×200
1200
800-1500
