Production: 8-800m³/h
Vibrating power: 800-970r/min

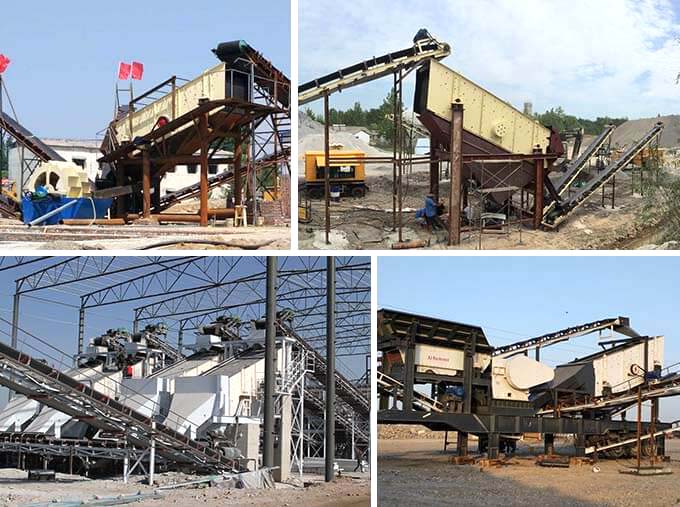

Application area:mine, building material, transportation, energy and chemistry.

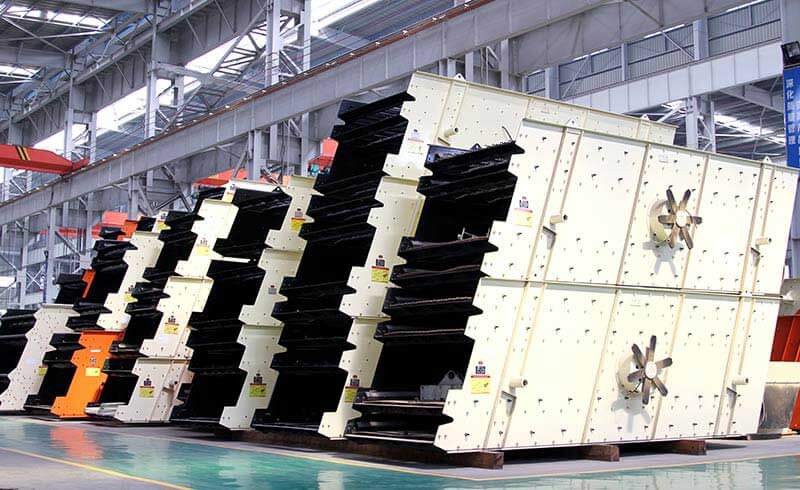

Vibrating screen is a kind of screen which can make the material be thrown up on the screen surface by using the principle of exciting vibration of the vibrating motor and make a reasonable match of the straight motion forward so as to achieve the purpose of screening.

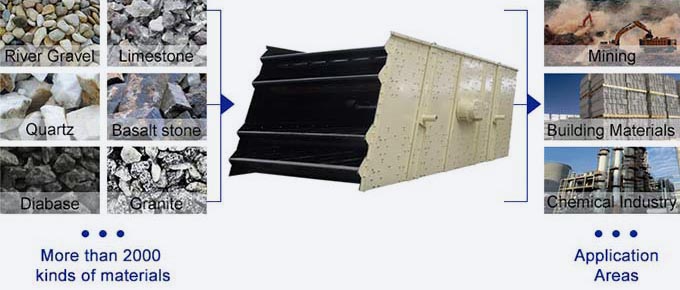

Vibrating screen is mainly used for screening and grading of powder and granular materials. It is widely used in plastics, abrasives, chemical industry, medicine, building materials, grain, carbon, fertilizer and so on.
YK Series Vibrating Screen
HX Series Vibrating Screen
Linear vibrating screen
| Model | Sieve Layer | Sieve Area (㎡) |
Processing capacity (m³/h) |
| 2YK1230 | 2 | 7.2 | 12-78 |
| 3YK1230 | 3 | 10.8 | 13-80 |
| 2YK1237 | 2 | 8.88 | 15-86 |
| 3YK1237 | 3 | 13.32 | 16-90 |
| 2YK1548 | 2 | 14.4 | 22.5-162 |
| 3YK1548 | 3 | 21.6 | 22.5-162 |
| 4YK1548 | 4 | 28.8 | 22.5-162 |
| 2YK1854 | 2 | 19.44 | 32-312 |
| 3YK1854 | 3 | 29.16 | 32-312 |
| 4YK1854 | 4 | 38.88 | 32-336 |
| 2YK2160 | 2 | 25.2 | 50-475 |
| 3YK2160 | 3 | 37.8 | 50-475 |
| 4YK2160 | 4 | 50.4 | 50-497 |
| 2YK2460 | 2 | 28.8 | 65-550 |
| 3YK2460 | 3 | 43.2 | 70-620 |
| 4YK2460 | 4 | 57.6 | 80-680 |
| 2YK2866 | 2 | 31 | 70-650 |
| 3YK2866 | 3 | 47 | 80-700 |
| 4YK2866 | 4 | 62 | 90-750 |
| 2YK2873 | 2 | 39.2 | 70-680 |
| 3YK2873 | 3 | 58.8 | 80-720 |
| 4YK2873 | 4 | 58.8 | 90-950 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Max.Feeding Size (mm) | Processing capacity(t/h) |
| 2ZD1545 | 200 | 45-500 |
| 3ZD1545 | 200 | 55-500 |
| 4ZD1545 | 200 | 65-500 |
| 2ZD1855 | 200 | 55-600 |
| 3ZD1855 | 200 | 65-600 |
| 4ZD1855 | 200 | 75-600 |
| 2ZD2165 | 200 | 65-700 |
| 3ZD2165 | 200 | 75-700 |
| 4ZD2165 | 200 | 85-700 |
| 2ZD2465 | 200 | 80-800 |
| 3ZD2465 | 200 | 90-800 |
| 4ZD2465 | 200 | 100-800 |
| 2ZD2765 | 200 | 100-900 |
| 3ZD2765 | 200 | 110-900 |
| 4ZD2765 | 200 | 120-900 |
| 2ZD3065 | 200 | 110-1200 |
| 3ZD3065 | 200 | 120-1200 |
| 4ZD3065 | 200 | 130-1200 |
| 2ZD3075 | 300 | 120-1300 |
| 3ZD3075 | 300 | 130-1300 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Sieve layer |
Mesh size |
Feeding size |
Processing capacity |
| （mm） | （mm） | (t/h) | ||
| ZSG1237 | 1 | 4-50 | ≤200 | 10-100 |
| 2ZSG1237 | 2 | 4-50 | ≤200 | 10-100 |
| ZSG1443 | 1 | 4-50 | ≤200 | 10-150 |
| 2ZSG1443 | 2 | 4-50 | ≤200 | 10-150 |
| 3ZSG1443 | 3 | 4-50 | ≤200 | 10-150 |
| 2ZSG1548 | 2 | 5-50 | ≤200 | 15-200 |
| 3ZSG1548 | 3 | 5-50 | ≤200 | 15-200 |
| 2ZSG1848 | 2 | 5-50 | ≤300 | 50-500 |
| 3ZSG1848 | 3 | 5-50 | ≤300 | 50-500 |
| 4ZSG1848 | 4 | 5-50 | ≤200 | 50-500 |
| 2ZSG1860 | 2 | 5-150 | ≤300 | 80-600 |
